Description
Description

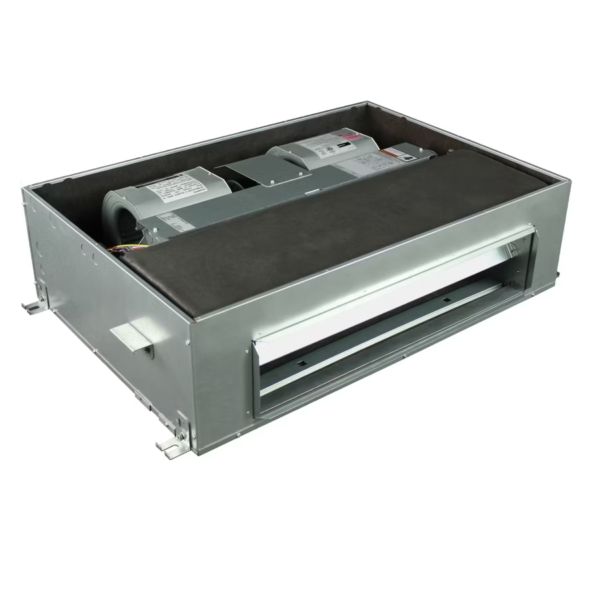

HORIZONTAL FAN COILS·FMU4P and FMC4P 1-1/2, 2, 2-1/2, and 3 Tons
ALL MODELSHorizontal application only
Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW
40 VA 208/230v-1-60 transformer
FMU4P & FMC4P use R-410A piston metering device
R-22 capable with accessory R-22 TXV
FMC4X & FMC4PHorizontal return applications require field fabricated bottom cover
Cabinets meet the requirement of 2% cabinet leakage rate at 1″. w.c. of static pressure
Cabinets constructed to prevent cabinet sweating
Refrigerant lines and electrical connections can be run out the back or side of casing
PERFORMANCEPSC motor on all models
EASY TO INSTALL AND SERVICEA-coil design for maximum surface area· Multiple electrical, refrigerant lineset and drain line entry for application flexibility
Primary and secondary drain connections exit from the back or side of the cabinet
Supports furred-down ceiling open return and ducted return applications
Sweat connections for long term reliability
Grooved copper tube / aluminum fin coils
Features and Specification
Weight
135
AHRI – Usage
Indoor AHU
Air Flow Direction
Horizontal
Blower Motor HP
1/3 HP
Blower Motor RPM
1,600
Blower Motor Speeds
3 (Three)
Blower Motor Type
PSC (Permanent Split Capacitor)
Brand
Tempstar
CFM
1,000
Cooling Capacity
30,000
Cubic Measurement
9.1416
Cycle/Hertz
60 Hz
Drain Connection Size
3/4″
Electric Heat Range [kW]
3-10
Energy Star Rated
No
Equipment Type
Straight Cool
ETL Listed
Yes
Height
11
Length
27.75
Liquid Line Fitting Type
Sweat or Braze
Liquid Line Size (OD)
3/8″
OPT Code
1PFMC4P3000AT
Phase
Single
Product Family
FMC4P
Prop 65
Yes
Refrigerant
R-410A
Stage
(1) Single
Suction Line Fitting Type
Sweat or Braze
Suction Line Size (OD)
3/4″
Tonnage
2.5
UOM
EA
UPC
See Optical
Voltage
208-230 VAC
Width
51.75
Maximum Overcurrent Protection (MOCP)
15
Country of Origin
CHN
Blower Motor Watts
506
Minimum Circuit Ampacity (MCA)
2.2
Substantial Commodity
Steel; Copper; Aluminum
